Transformer based forecast of productivity in DeepESDL (Kraemer et al. in prep)#
Introduction#
Given the intricate relationship between vegetation health and climate variables, developing robust deep learning architectures for environmental predictions is crucial. In this project, we chose the GPT architecture as our foundation because of its proven ability to capture complex patterns and long-term dependencies in sequential data. While originally designed for natural language processing, the transformer-based architecture of GPT excels at modelling intricate time-series relationships, making it a strong candidate for analysing environmental variables like kNDVI (a key indicator of vegetation health). By adapting GPT to process geodata and predict kNDVI, we demonstrate its versatility in addressing real-world environmental challenges.

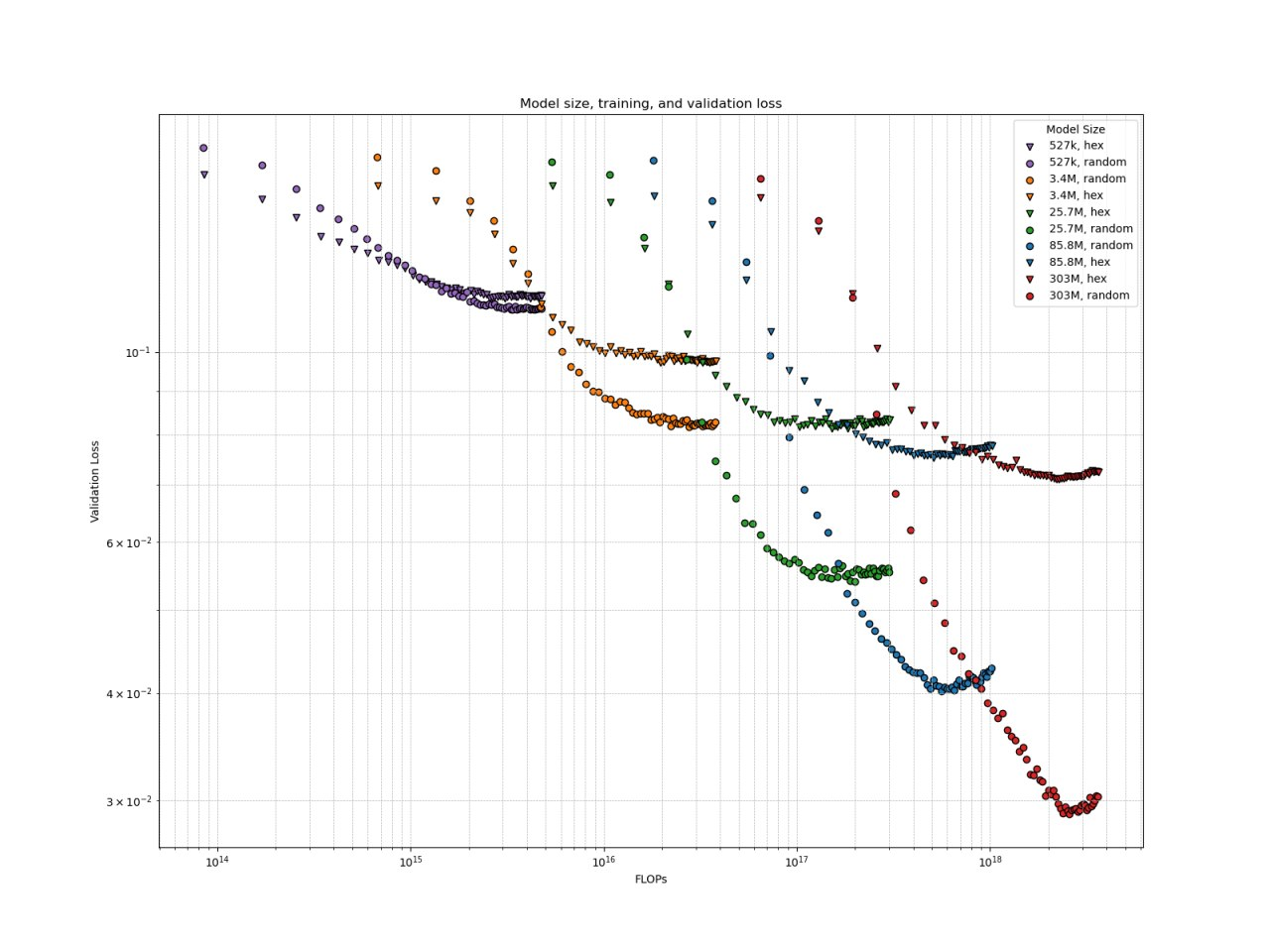

A key aspect of this project was exploring scaling laws in transformer architectures, a concept well-studied in NLP but underexplored in geodata applications. In NLP, researchers have extensively analysed how model performance scales with parameters, data size, and computational resources. However, these principles are equally relevant for environmental modelling, where resource efficiency is critical due to the often-limited availability of labelled geospatial data and computational budgets. To investigate this, we trained multiple smaller-scale versions of our adapted GPT model, systematically varying the number of parameters and assessing their impact on prediction accuracy.
Data#
The Earth System Data Cube (ESDC) version 3.0.2 serves as the primary dataset for this analysis, offering a robust and comprehensive framework for spatiotemporal exploration of Earth system variables. The ESDC is structured as a 4-dimensional data cube, comprising longitude, latitude, time, and multiple variables, including precipitation, temperature, evaporation, radiation, and kNDVI. This structure allows for the simultaneous analysis of diverse Earth observation (EO) streams on a common spatiotemporal grid, eliminating the need for extensive preprocessing to harmonize data from different sources. This approach provides a holistic view of the Earth system by considering the interdependencies among different environmental factors.
Sampling in blocks is crucial for spatial data due to the inherent spatial autocorrelation present in such datasets. Spatial autocorrelation refers to the tendency of nearby locations to exhibit similar values more frequently than distant locations. Random sampling without regard to spatial structure can lead to underestimating the prediction error of a model. By dividing the data into blocks—discrete regions that maintain local spatial relationships—we ensure a more balanced and representative sample.
Hexagonal sampling (hexsampling) is particularly advantageous for this purpose. Hex grids are well-suited for global coverage as they tile the Earth's surface without gaps or overlaps, ensuring efficient partitioning of data into manageable blocks. Each hexagon serves as a block that preserves local spatial patterns and relationships, which is essential for maintaining the integrity of spatial autocorrelation in the dataset. Hex grids offer uniform coverage and reduce sampling bias, especially important over large areas where traditional latitude-longitude grids can cause oversampling at the poles.
In summary, the combination of block sampling and hexagonal partitioning in the Earth System Data Cube provides an optimal framework for robust and reliable analysis of Earth system dynamics. This approach ensures that the dataset is both representative and computationally manageable, preserving the spatial integrity necessary for accurate environmental modeling.
Methods#
To tailor GPT for this task, we made few modifications. First, we transformed the input format to accommodate multivariate environmental data, replacing the token embedding layer with a linear projection layer that maps features into a high-dimensional space suitable for transformer blocks. Similarly, we adjusted the output layer to predict continuous environmental variables instead of discrete text tokens. These changes allowed us to leverage GPT's advanced capabilities for time-series forecasting while maintaining its core architectural strengths.
Discussion#
Given the complex relation between vegetation and climate, a robust deep learning architecture is required. Here we chose GPT as an architecture because. GPT's transformer-based model excels in capturing complex patterns and long-term dependencies within sequential data such as natural language, making it well-suited for analysing the intricate time-series data of environmental variables. By adapting GPT from predicting language to predicting time-series, and training it to predict kNDVI, we unlock its advanced capabilities to interpret and forecast vegetation health, thereby providing a powerful tool to support environmental stewardship. GPT was originally created to predict text, and the architecture had to be adapted to work on generic time series. Most importantly, the input format was fundamentally transformed. While the original GPT processes text tokens, our model was designed to accept multivariate environmental data. To handle these inputs, we replaced the token embedding layer with a linear layer that projects multivariate features into a high-dimensional space suitable for the GPT-2 transformer blocks. We also replaced the output layer from predicting text tokens with a linear layer to predict environmental features. We trained models of different sizes. Because the original GPT-2 model was quite substantial in size and training a model of the same size would have been infeasible to train. Therefore, we trained several smaller models to assess the scaling of the accuracy of the model prediction with the number of parameters of the model and the amount of compute used for training. By making these adaptations, we successfully leveraged the robust architecture of GPT-2 to achieve highly accurate environmental predictions. This endeavour not only showcases the versatility of transformer models but also highlights their potential in addressing complex, real-world forecasting challenges.
Conclusion#
The successful adaptation of the GPT-2 model for environmental predictions demonstrates the remarkable versatility of transformer architectures beyond their original design for text. By making key modifications to the input and output layers, we enabled GPT-2 to process multivariate environmental data and predict kNDVI, a crucial indicator of vegetation health. Despite the challenge of training large-scale models with limited resources, we achieved highly accurate results by carefully scaling down the model size and evaluating trade-offs between complexity and performance. Our experiments reveal that smaller models can perform comparably well, underscoring the importance of efficiency in resource management for environmental forecasting tasks.
The results of this research offer a novel approach to leveraging state-of-the-art AI for environmental stewardship, highlighting the potential of transformers to tackle complex, real-world forecasting challenges. This approach is now being made publicly available as a notebook, ensuring that the broader scientific community can benefit from our methods and apply them to further enhance environmental resource management and climate monitoring efforts.
