4. Cube Insights#

In order to decide which preprocessing steps are required by your machine learning application, the insights module offers tools for extracting and analyzing characteristics of an xarray.DataArray object. This module includes functions to assess the completeness and distribution of data within the cube.

Demo Notebook#

The corresponding Jupyter notebook containing the entire workflow can be accessed here:

The detailed workflow in order to analyze the specifics of a data cube is demonstrated in the following:

import xarray as xr
from ml4xcube.insights import get_insights

# Load sample data
ds = xr.open_zarr('sample_data.zarr')
ds = ds['temperature']

# Get insights from the data cube
get_insights(ds)

The get_insights function, prints the following statistics (example for a cube containing dimensions named time, latitude, and longitude):

100%|████████████████████| 10/10 [00:09<00:00,  1.10it/s]
The data cube has the following characteristics:

Variable:             Land Surface Temperature
Shape:                (time: 10, lat: 2160, lon: 4320)
Time range:           2002-05-21 - 2002-08-01
Latitude range:       -89.958° - 89.958°
Longitude range:      -179.958° - 179.958°
Total size:           93312000
Size of each layer:   9331200
Total gap size:       74069847 -> 79 %
Maximum gap size:     87 % on 2002-06-06
Minimum gap size:     75 % on 2002-08-01
Value range:          222.99 - 339.32

Utiliting the get_gap_heat_map the amount of missing values over time can be computed for every latitude/longitude pixel:

import xarray as xr
from ml4xcube.plotting import plot_slice
from ml4xcube.insights import get_gap_heat_map

# Load sample data
ds = xr.open_zarr('sample_data.zarr')
ds = ds['temperature']

# Generate and visualize the gap heat map
gap_heat_map = get_gap_heat_map(ds)
dataset   = gap_heat_map.to_dataset(name='temperature')

plot_slice(
    ds          = dataset,
    var_to_plot = 'temperature',
    color_map   = "plasma",
    title       = "Filled artificial gaps matrix",
    label       = "Number of gaps",
    xdim        = "lon",
    ydim        = "lat"
)

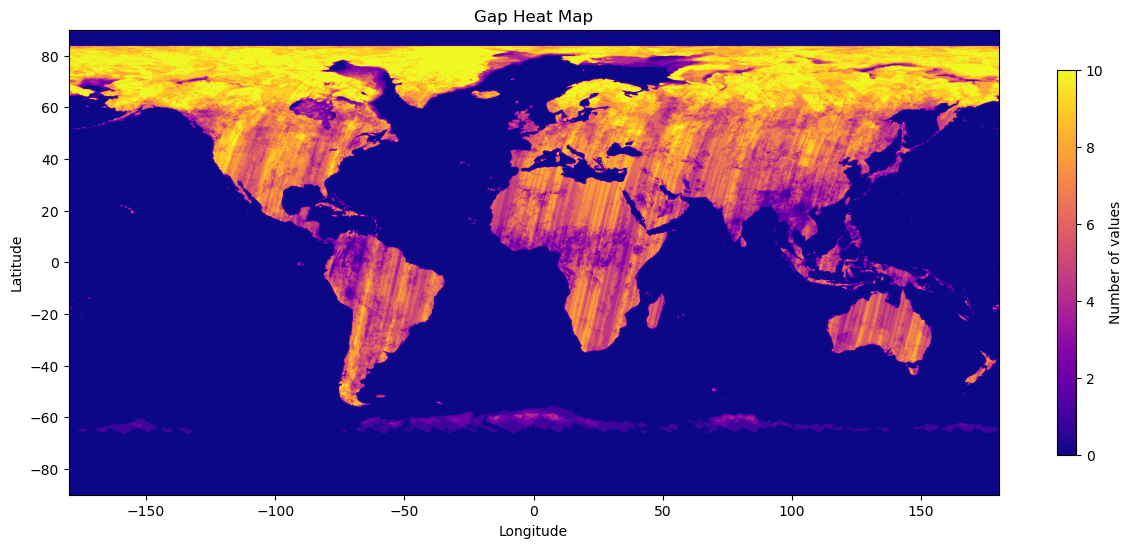

Running this example results in the following illustration, showing a heatmap of data gaps in the land surface temperature variable over time. The number of available data ranges from 0 to 10, corresponding to the 10 frames in the analyzed cube:

Gap Heat Map

Heatmap of available data in the land surface temperature variable over time
