1. Land Surface Temperature prediction#

This generic use case aims at the prediction of land surface temperature values based on air temperature values derived from the ESDC (Sentinel 3 SLSTR and Terra MODIS sensor, s3 store).

Satellite monitoring is highly sensitive to atmospheric conditions, in particular to cloud cover, leading to the loss of a significant part of data, especially at high latitudes. This may even affect some pixels of an image which are not cloudy, but strongly influenced by cloud cover, usually because they were cloudy shortly before the moment of sensing or because of cloud shadows (Sarafanov et al. 2020). Therefore, remotely sensed land surface temperature images are patchy and gaps need to be filled in to complete the data set. Here, we propose a shallow neural network (Linear Regression) to predict missing values of land surface temperature from consistent air temperature values.

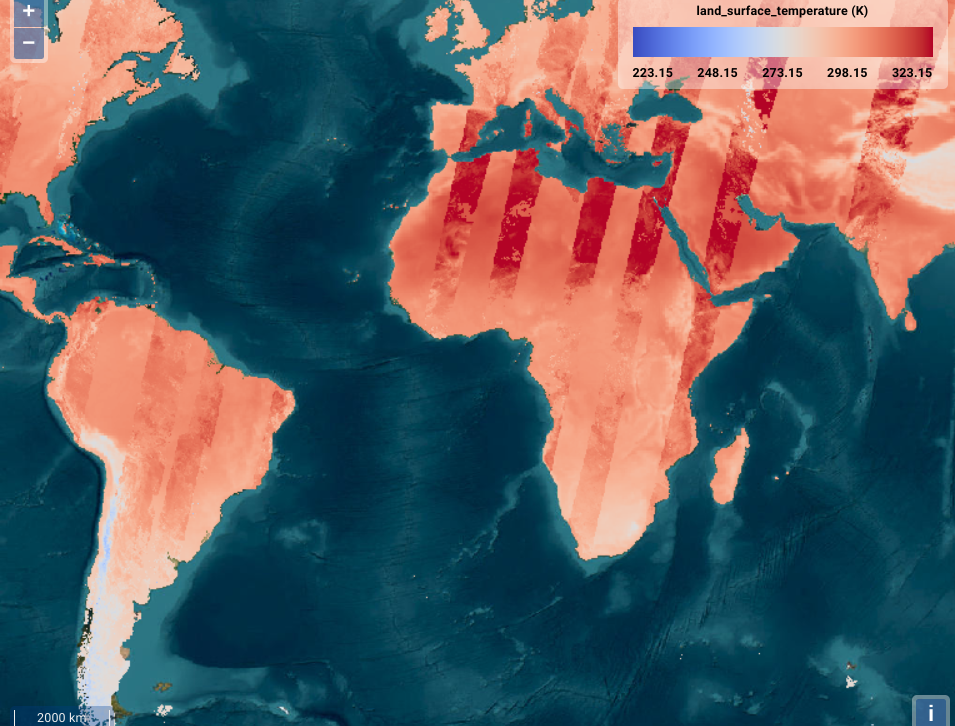

ML prediction of missing Land Surface Temperature values from Air Temperature values (xcube viewer)

Demo Notebooks#

All Jupyter Notebooks follow the same approach, involving five major sections supported by markdown cells, comments, and plots:

Approach#

Import necessary libraries and mltools
Load Earth System Data Cube (s3 object store)
Initialize data mask
Assign train/test split
Preprocessing (filtering NaNs, standardization, normalization)
Model set-up (linear regression with 1 node/ shallow neural network)
Model training and validation over a number of epochs:
- Training:
  - Generate training batches using existing data loading and transformation mechanisms from Keras and PyTorch (DataGenerator, DataLoader)
  - Train model, and compute average epoch training loss
- Validation:
  - Generate testing batches using existing data loading and transformation mechanisms from Keras and PyTorch (DataGenerator, DataLoader)
  - Test model, and compute average epoch validation loss
Use model to make predictions & plot results

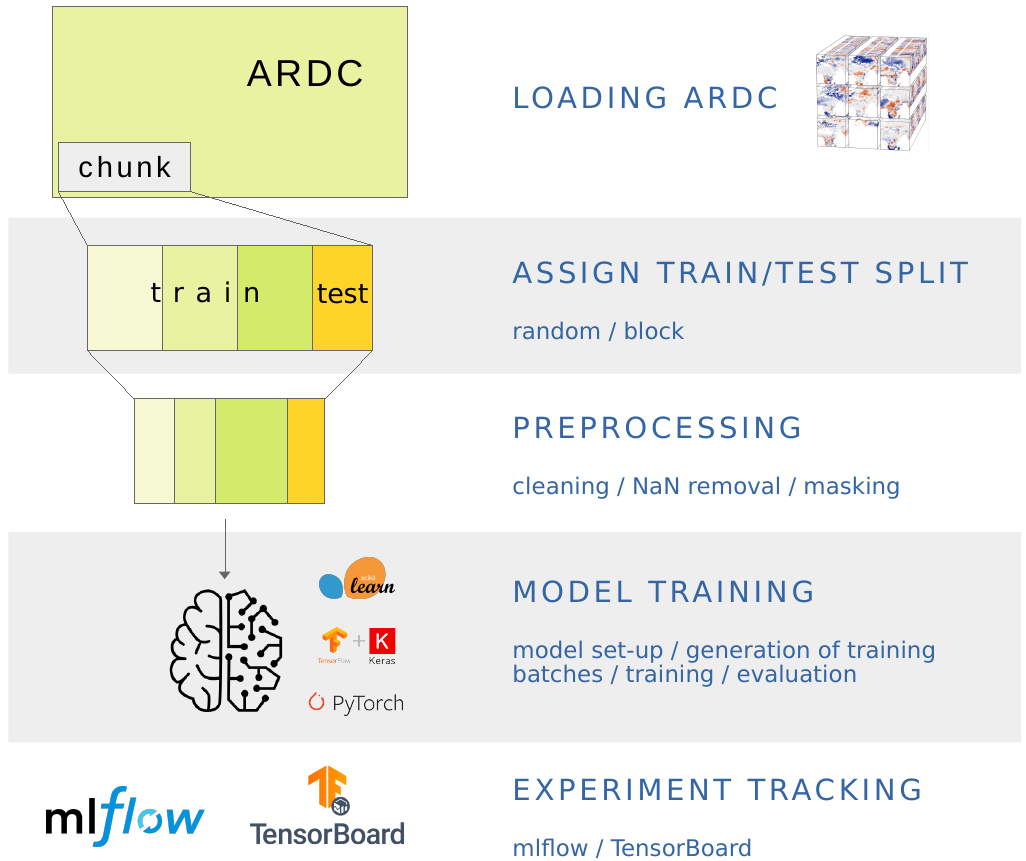

Machine Learning workflow on Analysis Ready Data Cubes

Preliminary Condition#

As initially described in the demo cases, the missing values of land surface temperature are predicted from consistent air temperature values.

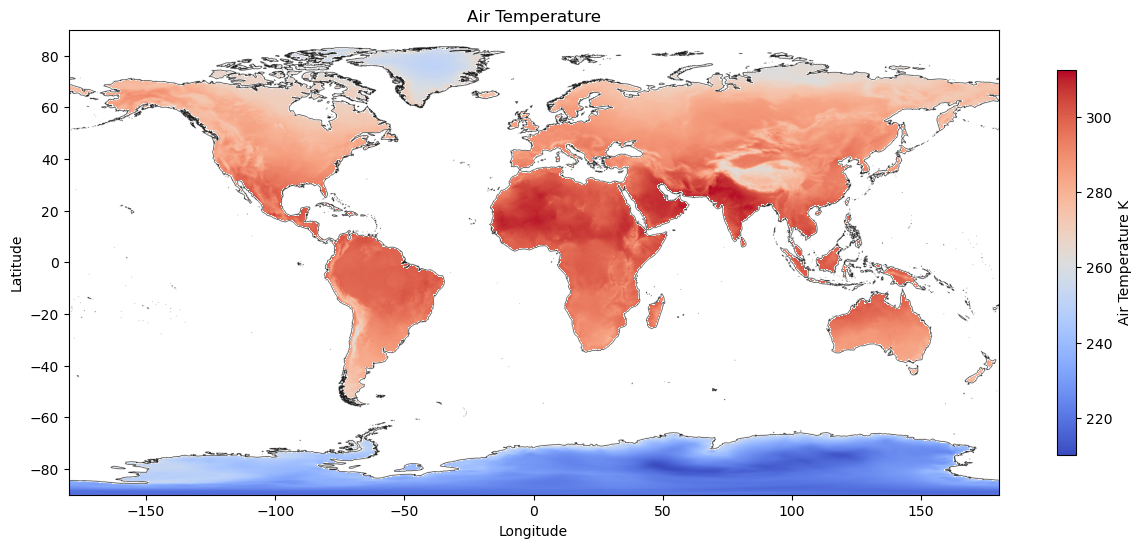

Air Temperature

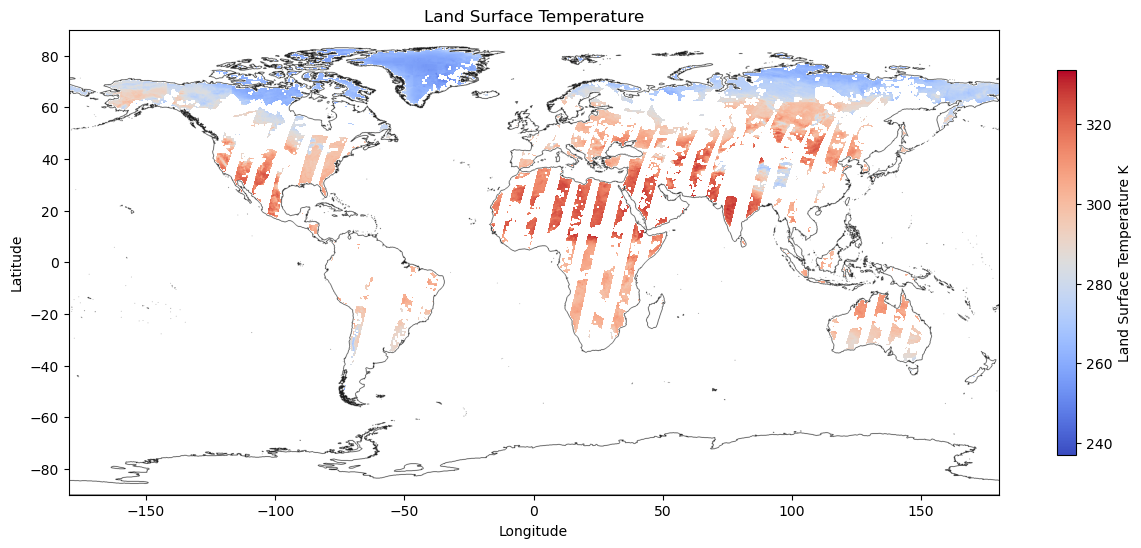

Land Surface Temperature

Machine Learning Approach#

In this section, the machine learning approach is briefly illustrated based on the TenorFlow notebook. For comprehensive implementations, refer to the demo notebooks to see the full implementations.

1. Load Earth System Data Cube#

First, the zarr data cube is loaded from the s3 data store. The ESDC consists of three dimensions: longitude, latitude, and time. The focus will be on two variables: "land_surface_temperature" and "air_temperature_2m".

from xcube.core.store import new_data_store

# Initialize the data store for accessing the s3 bucket
data_store = new_data_store("s3", root="esdl-esdc-v2.1.1", storage_options=dict(anon=True))

# Open the dataset
dataset = data_store.open_data("esdc-8d-0.083deg-184x270x270-2.1.1.zarr")

# Select a smaller subset of the data for this demo case
start_time = "2002-05-21"
end_time = "2002-08-01"
ds = dataset[["land_surface_temperature", "air_temperature_2m"]].sel(time=slice(start_time, end_time))

2. Add land mask variable#

Fir the prediction of the land surface temperature values only terrestrial regions are relevant. Therefore, a land variable is assigned to the ESDC to exclude the oceanic regions.

import numpy as np
import dask.array as da
from global_land_mask import globe
from ml4xcube.preprocessing import assign_mask

lon_grid, lat_grid = np.meshgrid(ds.lon,ds.lat)
lm0                = da.from_array(globe.is_land(lat_grid, lon_grid))
xdsm               = assign_mask(ds, lm0)
xdsm

3. Train-/ Test Split on Geo-Data#

The ml4xcube.splits module provides two methods to split the data into training and test sets: random split and block split.

1. Random Split

The random split is a straight forward procedure in classical machine learning application to divide data in a train and a test set. Every data sample is assigned randomly with a predefined probability either to the train or the test. This approach can lead to issues due to spatio-temporal distances and auto-correlation within chunks.

2. Block Split

It is therefore mandatory to utilize techniques that respects the basic principles of geo-data way beyond naive random split method in the Earth system context. To avoid auto-correlation during the training phase of the model, data splitting should rather be guided by the block split strategy, which segments data into contiguous blocks based on geographical and temporal proximity, assigning data points from these blocks to either training or test sets with a specific probability. This strategy keeps closely related data points together, reducing information leakage across the train-test divide and enhancing testing integrity.

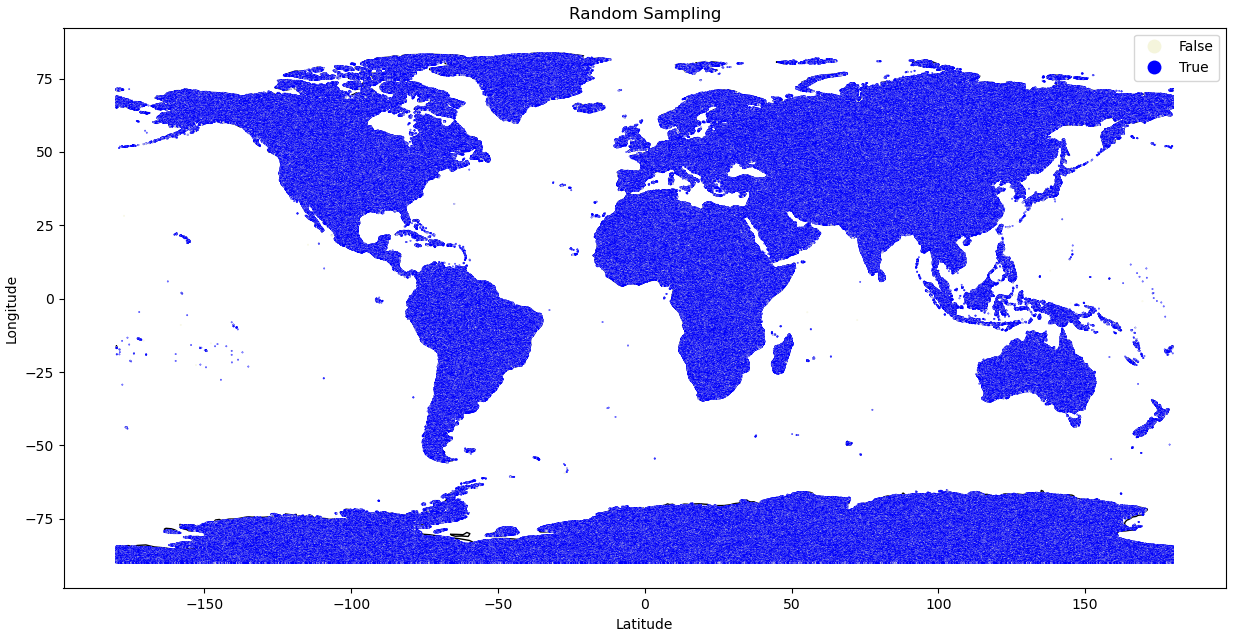

Random Train-Test Assignment

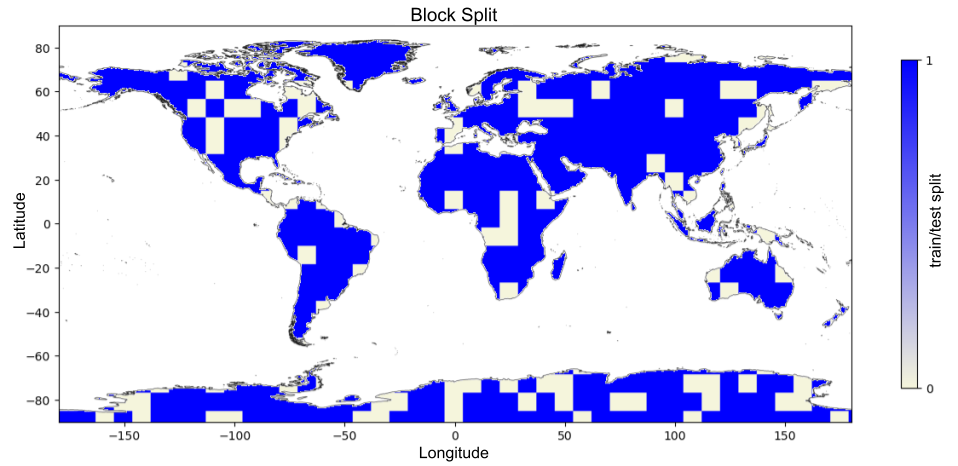

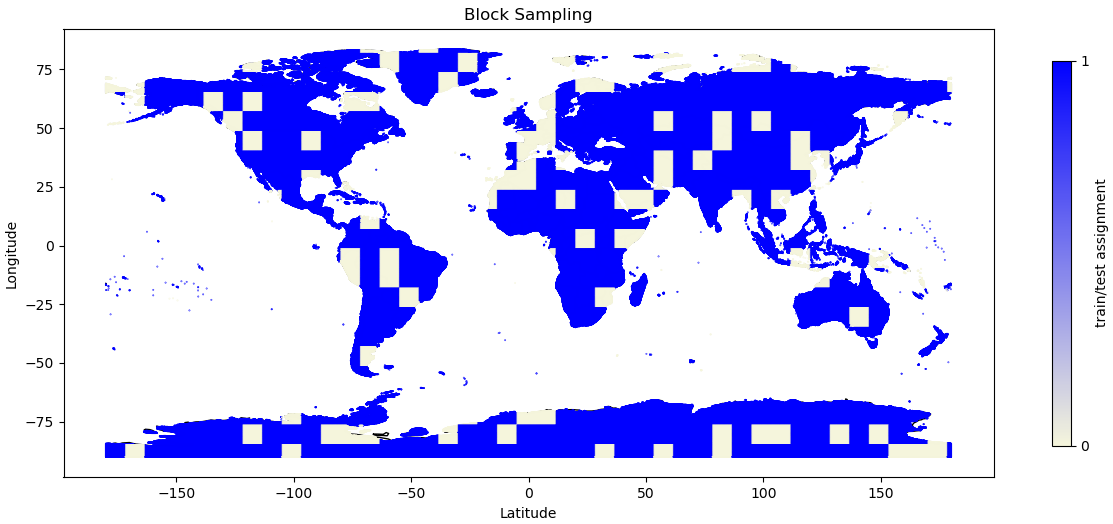

Balanced Stratified Train-Test Assignment

For this case, the assign_block_split method is employed to allocate each data point to either the training or test set:

from ml4xcube.splits import assign_rand_split, assign_block_split

# random splitting
"""
xds = assign_rand_split(
    ds    = xdsm,
    split = 0.8
)
"""

# block splitting
xds = assign_block_split(
    ds         = xdsm,
    block_size = [("time", 10), ("lat", 100), ("lon", 100)],
    split      = 0.8
)
xds

4. Train-/ and Test Set Creation and Preprocessing#

In this step, data is preprocessed for training using the designated sampler. The dataset undergoes standardization and is segmented into manageable samples. The feature scaling strategy can be customized via the scale_fn parameter, which allows for normalization or can be set to None for manual adjustments. If None, a custom feature scaling function can be introduced using the callback parameter, enabling further preprocessing flexibility with costum functions.

By default, missing values are omitted from the dataset. To apply alternative imputation strategies, adjust the drop_nan parameter of the XrDataset. For comprehensive guidance on these options, please consult the ml4xcube API description description.

Following preprocessing, the data is allocated into training and testing sets based on the previously determined block split strategy, ensuring readiness for the subsequent training phase.

import tensorflow as tf
from ml4xcube.datasets.xr_dataset import XrDataset

sampler               = XrDataset(ds=xds, num_chunks=3, rand_chunk=False, to_pred='land_surface_temperature')
train_data, test_data = sampler.get_datasets()

# Create TensorFlow 6-datasets for 7-training and testing
train_ds = tf.data.Dataset.from_tensor_slices(train_data).batch(32)
test_ds = tf.data.Dataset.from_tensor_slices(test_data).batch(32)

5. Model Setup, Optimizer and Loss Definition#

A simple linear regression model using TensorFlow is defined, followed by the setup of the optimizer and the loss function definition.

import tensorflow as tf
from tensorflow.keras import layers as L

# Define epoch and learning rate
lr     = 0.1
epochs = 10

# Create model
inputs      = L.Input(name="air_temperature_2m", shape=(1,))
output      = L.Dense(1, activation="linear", name="land_surface_temperature")(inputs)
model       = tf.keras.models.Model(inputs=inputs, outputs=output)
model.compile(optimizer="adam", loss="mean_squared_error", metrics=["mae"])

model.optimizer.learning_rate.assign(lr)

6. Model Training and Validation#

Finally, the model is trained using train_ds and validated with the test_ds dataset. Early stopping is employed to prevent overfitting. The best model weights, according to the validation score, are saved, and the trained model is returned, ready for predictions.

from ml4xcube.training.tensorflow import Trainer

trainer = Trainer(
    model=model,
    train_data=train_ds,
    test_data=test_ds,
    early_stopping=True,
    patience=5,
    model_path="best_model.keras",
    mlflow_run=mlflow,
    epochs=epochs,
    create_loss_plot=True
)

model = trainer.train()

Results#

After conducting the entire machine learning approach the trained model can be used to make predictions for the missing land surface temperature values:

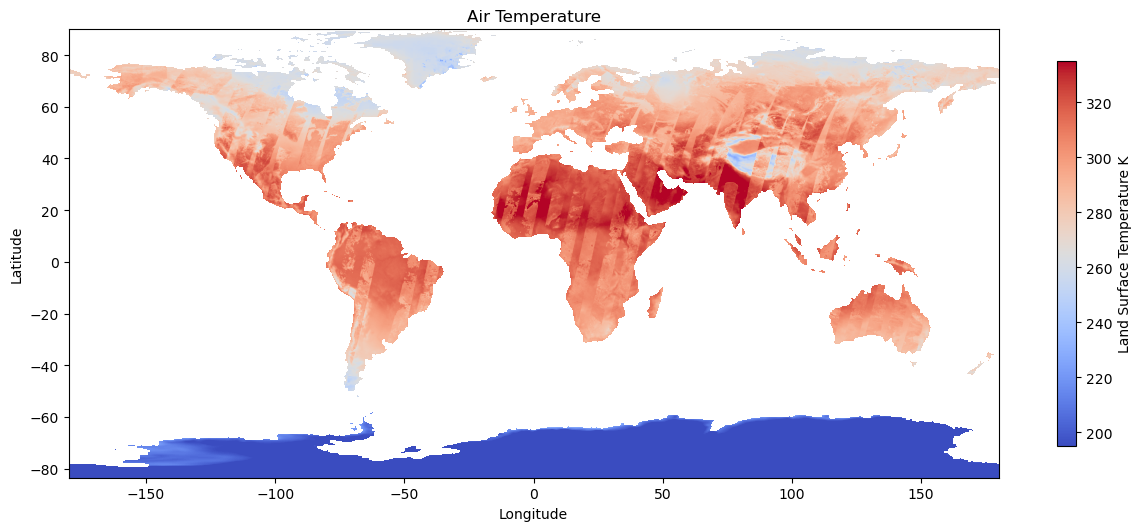

Land Surface Temperature Filled

Model Tracking#

Within the land surface temperature use cases model tracking is realized through the usage of TensorBoard and mlflow. These tools offer science teams an easy-to-use platform allowing to run and scale their Machine Learning workloads in a collaborative environment supporting versioning and sharing of parameters, models, artefacts, results, etc. within the team and potentially external users. Mlflow supports the MLOps pipelines particularly to log and evaluate experiment runs as well as to store models in a registry. Persistent mlflow deployments are made available on team level to allow each team member to compare their experiments with those of the other team members and to use the trained models of others. TensorBoard as another collaborative tool in this MLOPs space is currently evaluated by the science teams and available as part of the TensorFlow conda kernel to individual users within their JupyterLab session.

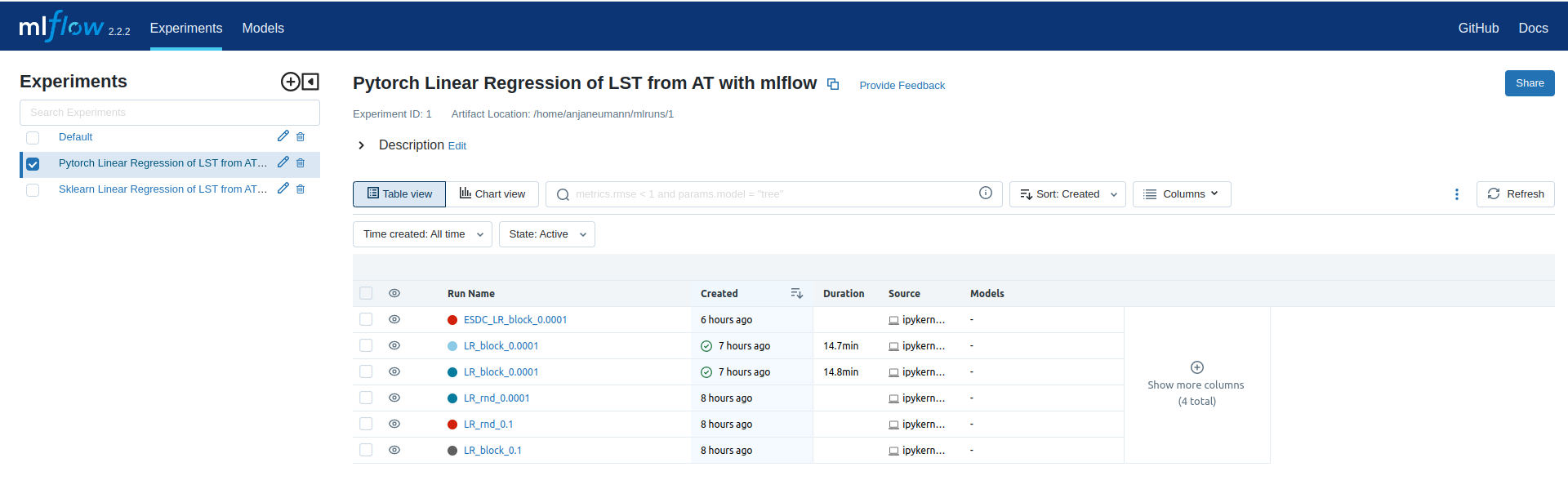

Collaborative Experiment Tracking with mlflow
